Geometries were created through an iterative design process. Grasshopper script and Rhinoceros 6 were used to create forms that created the basis for a small pavilion structure. To ensure the geometries could be fabricated, waffle contours and radial contours were utilised. Processes of 3D printing were also used to test small models.

iteration and geometry - digital design - grasshopper script

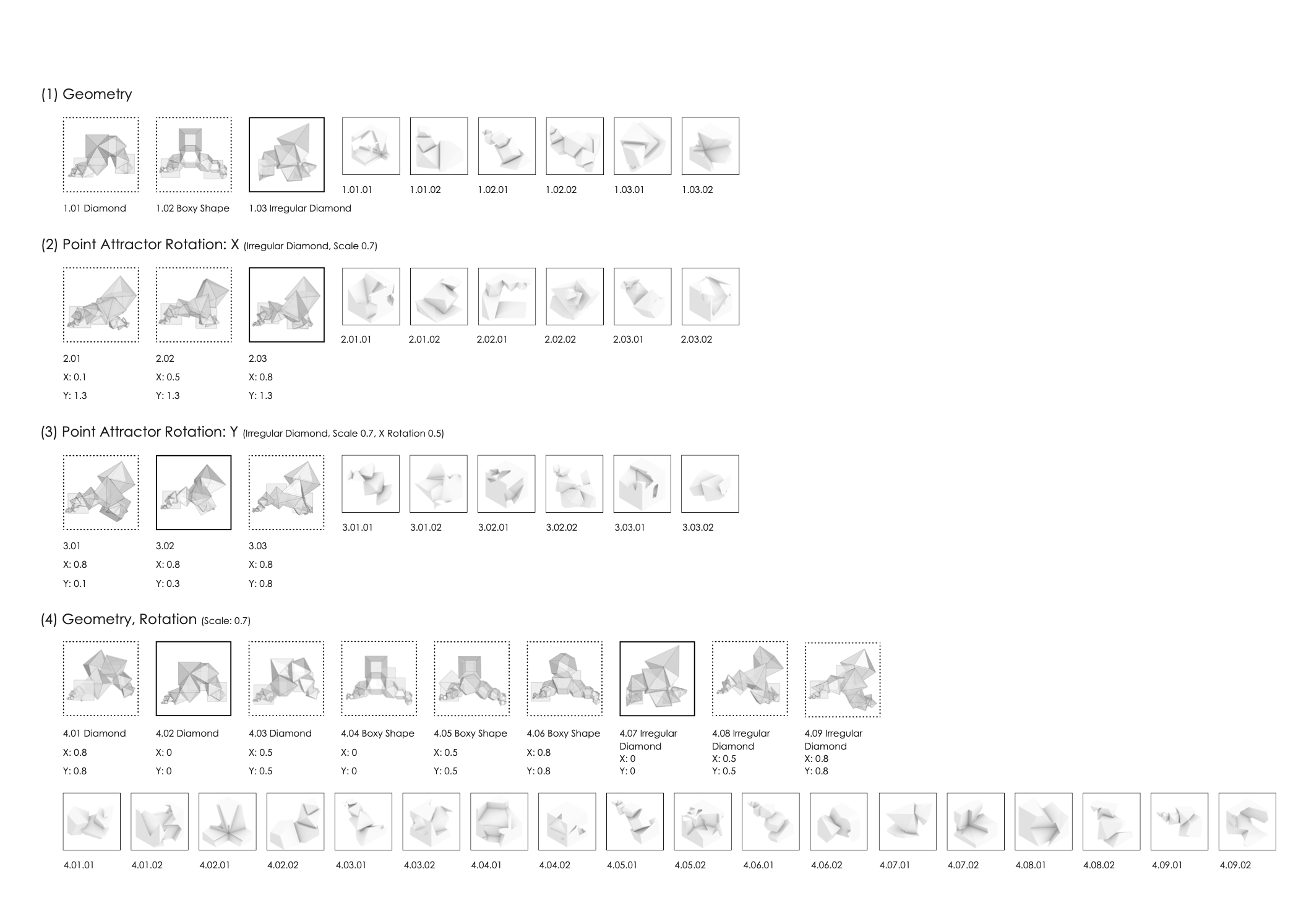

iteration and geometry - digital design - iteration matrix

iteration and geometry - digital design - iteration matrix

iteration and geometry - digital design - grasshopper script - developable geometry

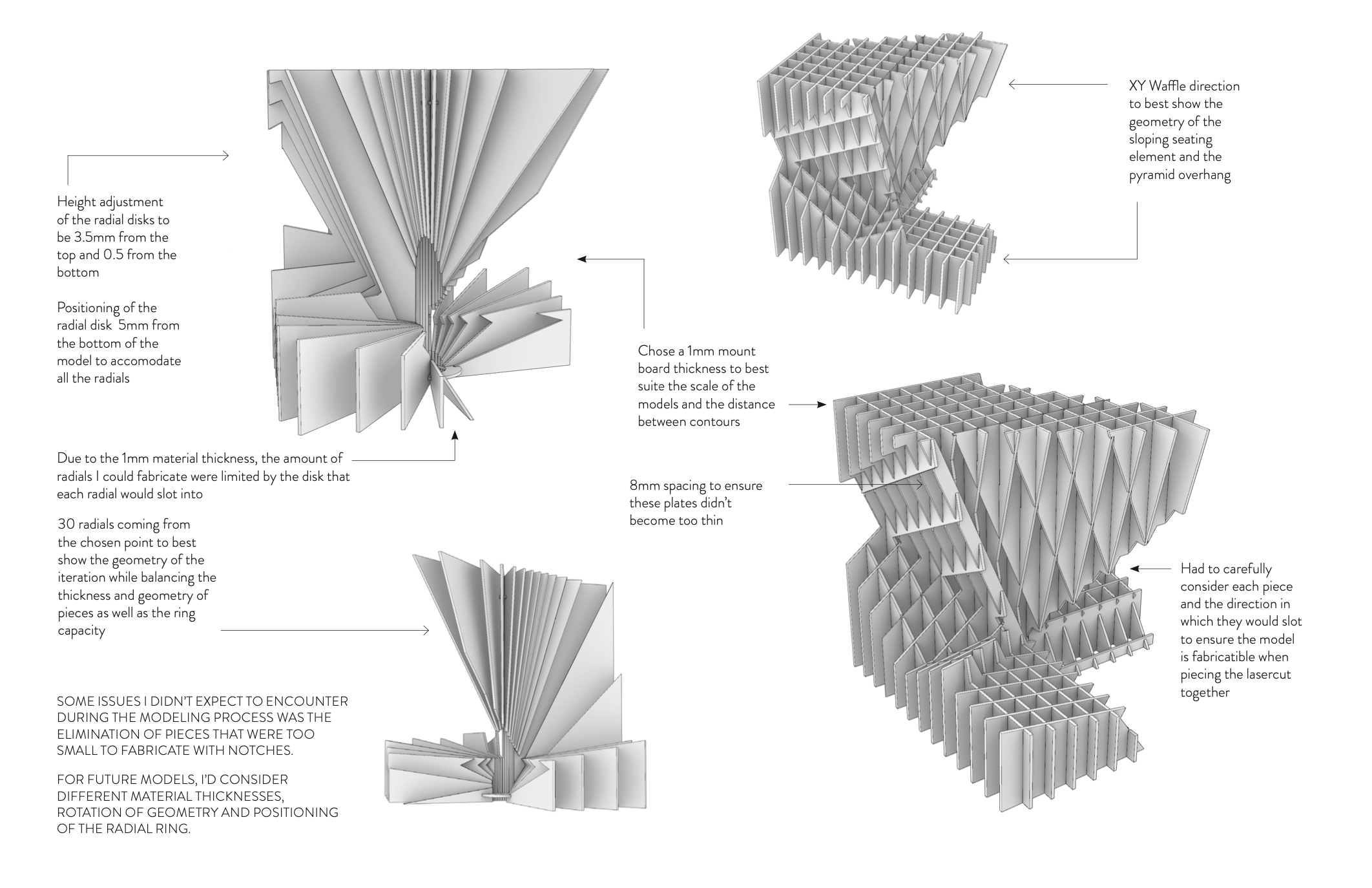

iteration and geometry - digital design - radial and waffle contours

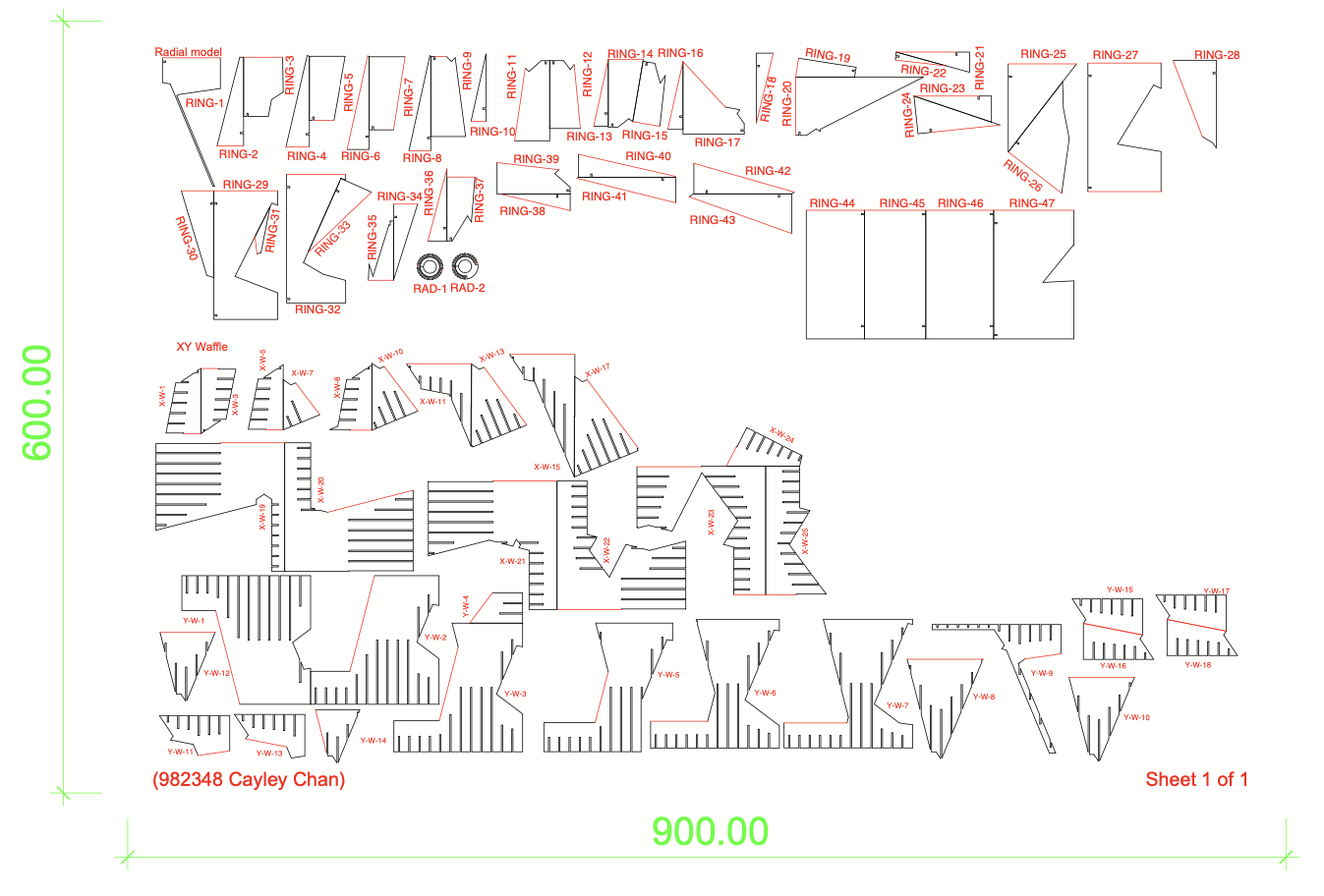

iteration and geometry - digital design - laser cut file

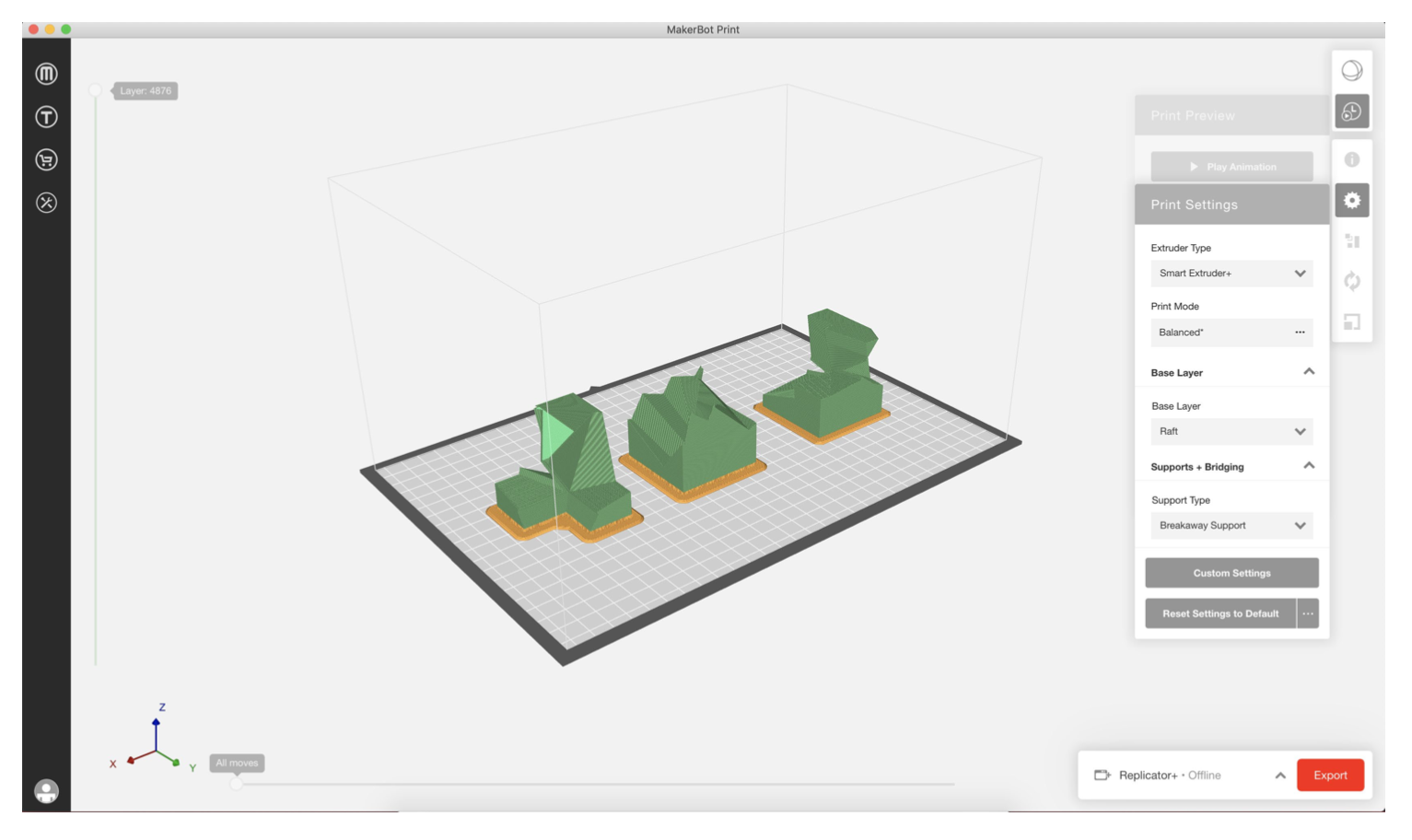

iteration and geometry - digital design - 3D printing

iteration and geometry - digital design - waffle contour isometric

iteration and geometry - digital design - object studies

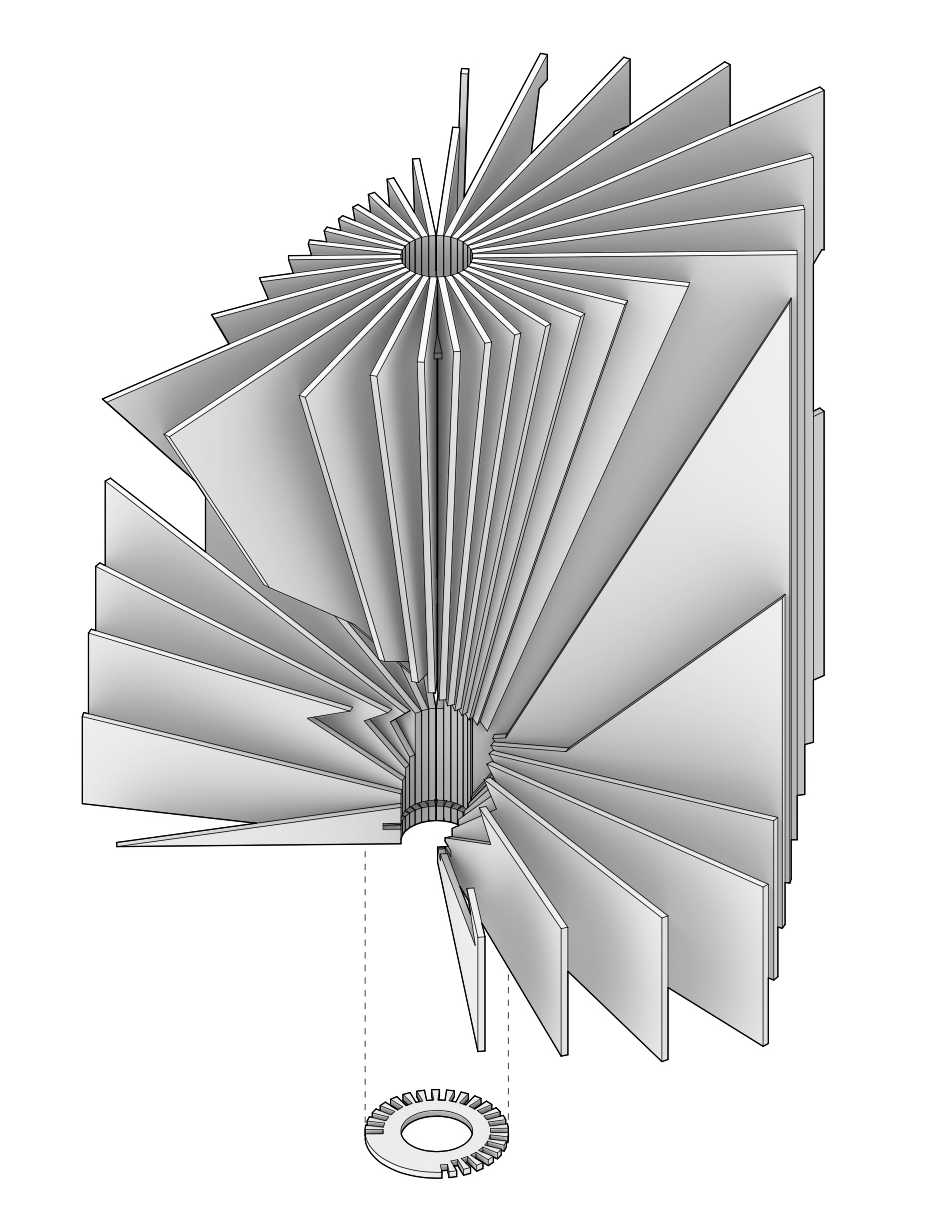

iteration and geometry - digital design - radial contour

iteration and geometry - digital design - chosen geometries

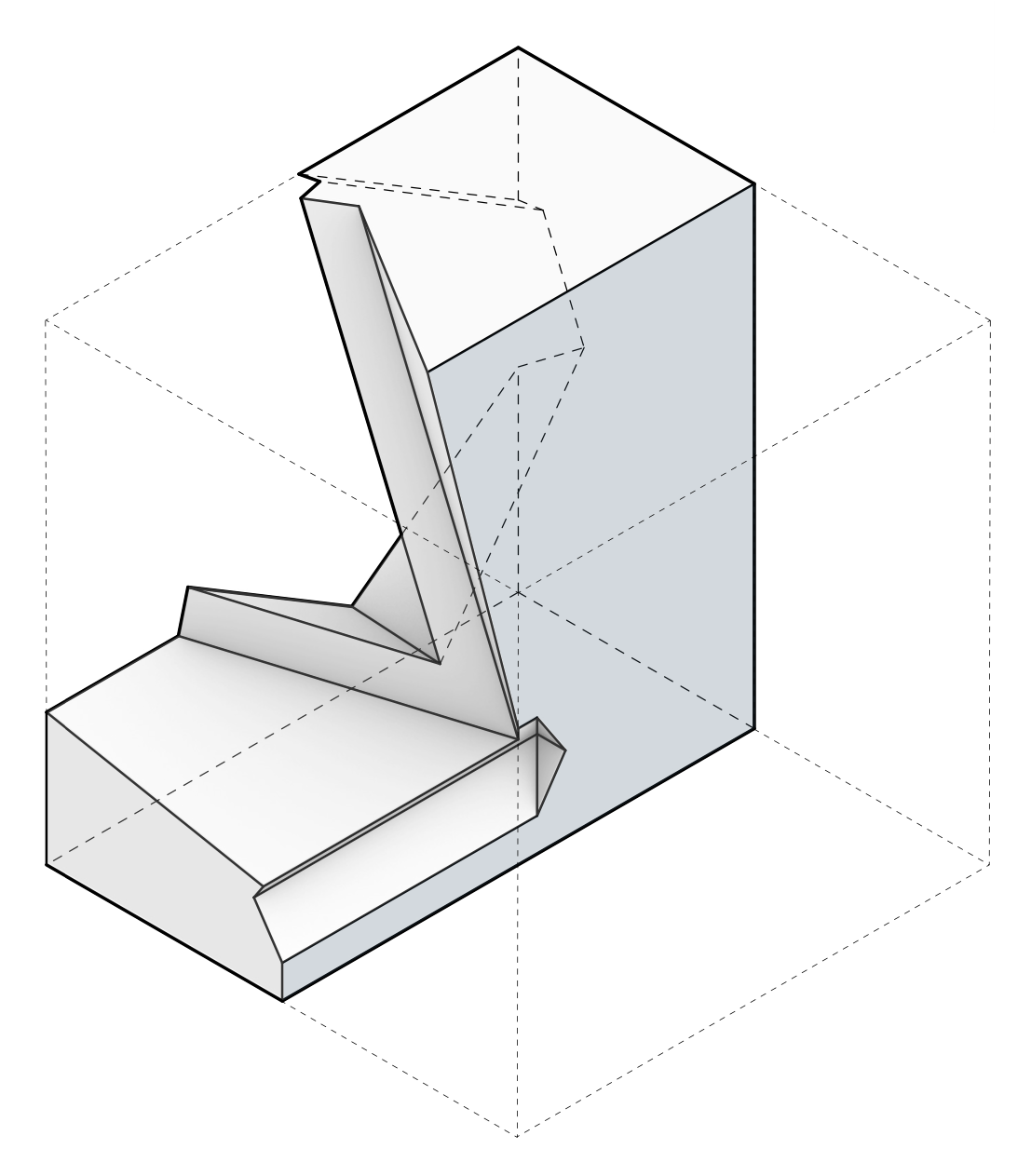

iteration and geometry - digital design - geometry cube crop
